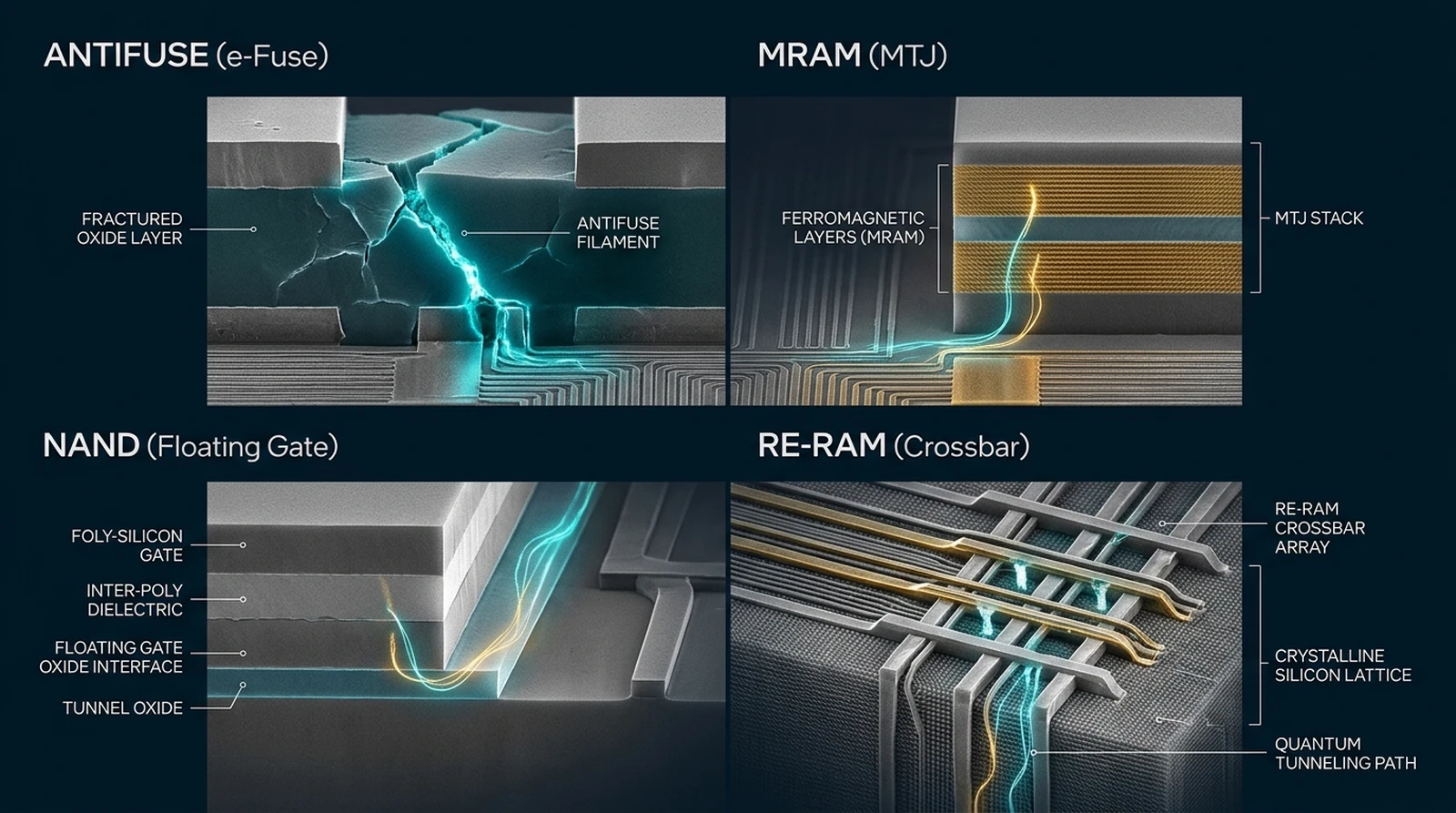

微影光罩道數與晶圓加價率Mask Adders & Wafer Cost Impact
學術指標對照:Academic Baseline:
原圖無對應(原圖僅看 Cell F²,忽略製程光罩成本是 SoC 決定生死的第一道關卡)Corresponds to academic technology metrics, elevated to SoC system integration criteria.
架構權衡實務:Architectural Tradeoff:
0-Mask 完全相容標準邏輯製程(晶圓零加價);eFlash 增加 8~12 道光罩導致晶圓加價 25~40%,小晶粒極不經濟;BEOL 新興技術(ReRAM/MRAM)增加 2~5 道後段光罩,增加 8~15% 晶圓成本。0-Mask logic CMOS compatibility eliminates wafer cost adder (0%); eFlash requires 8-12 front-end masks (+25~40% wafer adder), highly uneconomic on small dies; BEOL emerging NVMs (ReRAM/MRAM) add 2-5 back-end masks (+8~18% wafer cost).
|
+0 道(純邏輯)+0 (Standard Logic)
標準代工庫原生整合,晶圓 0 加價Foundry native baseline, 0% wafer adder
|
0 ~ +1 道0 ~ +1 Mask
金屬層或 Contact/Via 改動,極低光罩費用Contact/via programming layer only
|
+0 道(純邏輯)+0 (Pure Logic CMOS)
100% 邏輯相容,零額外光罩,小晶粒總成本最低100% logic compatible, 0 adder, lowest TCO on small dies
|
+0 道(純邏輯)+0 (Standard Logic)
單層多晶矽邏輯相容,晶圓零加價Single-poly standard logic, 0 adder
|
通常 +0 道Typically +0
單層多晶矽 FN 穿隧,零光罩至 +1 道注入Single-poly FN, 0-mask or optional +1 well implant
|
+0 ~ +2 道+0 ~ +2 Masks
依供應商與 PDK 分流(基線 +0,高密度版 +2 道井注入)Vendor-split: baseline +0, Gen2 +2 well-implants
|
+8 ~ +12 道(FEOL)+8 ~ +12 (FEOL)
前段專用高溫/浮閘光罩,晶圓加價 25%~40%,28nm 以下停滯Front-end dedicated masks, +25~40% cost, stalls <28nm
|
+2 ~ +4 道(FEOL)+2 ~ +4 (FEOL)
O-N-O 捕捉層模組,晶圓加價 10%~18%O-N-O trapping module, +10~18% wafer cost adder
|
+3 ~ +5 道(BEOL)+3 ~ +5 (BEOL)
後段金屬層 MTJ 模組,晶圓加價 12%~18%Back-end MTJ stack, +12~18% wafer cost adder
|
+2 ~ +4 道(BEOL)+2 ~ +4 (BEOL)
後段金屬層過渡金屬氧化物模組,晶圓加價 6%~10%Back-end transition-metal oxide, +6~10% wafer adder
|
+2 ~ +4 道(BEOL/FEOL)+2 ~ +4 (BEOL/FEOL)
鐵電電容或 HfO2 薄膜,晶圓加價 8%~12%Ferroelectric cap or HfO2 gate, +8~12% wafer adder
|
|
02
巨集實體密度與周邊電路開銷Macro-Level Density & Silicon Overhead
學術指標對照:Academic Baseline:
對應原圖 Cell Area (F²),升維至包含電荷泵、感測放大器與高壓隔離間距的巨集實體面積Corresponds to academic technology metrics, elevated to SoC system integration criteria.
架構權衡實務:Architectural Tradeoff:
小容量(1Kb~64Kb)下,高壓幫浦與周邊開銷佔巨集 80% 面積,Cell F² 影響極小;大容量(>4Mb)下,Cell F² 才是矽面積主導因素。At small capacities (1Kb-64Kb), high-voltage pumps and peripheral circuits consume 80%+ macro area, making cell F² secondary; at >4Mb, array cell F² dominates total silicon area.
|
極低密度(周邊極大)Very Low Density
60–120 F²;大電流金屬線路與感測電路使小容量巨集龐大60–120 F²; heavy wiring & drivers dominate small macros
|
最高密度(極緊湊)Ultra-High Density
<8 F²;無高壓幫浦,周邊極簡,矽面積極小<8 F²; no pumps, minimal peripheral, lowest area
|
Core 極緊湊(1T 專利對半縮減)Core Ultra-Compact (1T Halved)
10–25 F²;Core 閘氧原生微縮;1T 專利陣列較 2T 減半*10–25 F²; Core GOX native scaling; 1T array halved vs 2T*
|
大(I/O 級佔位)Large (I/O Class)
100–250+ F²;侷限 5V/3.3V 厚氧,為 1T 的 10×–25× 面積*100–250+ F²; 5V/3.3V thick oxide bound; 10×–25× area of 1T*
|
中低密度(電容開銷大)Low-Medium Density
60–120+ F²;單層多晶矽需 >80% 面積作為控制電容60–120+ F²; >80% area dedicated to coupling capacitors
|
中高密度(25–50 F²)Medium-High Density
25–50 F²;熱電洞注入縮小耦合電容,適合 16Kb~512Kb25–50 F²; hot-carrier injection shrinks capacitor size
|
大容量高密度High Density for >1Mb
12–30 F²;專用 FEOL 單元緊湊,但有巨大高壓泵周邊12–30 F²; tight cell, but massive HV charge pump overhead
|
大容量高密度High Density for >1Mb
15–35 F²;電荷捕捉層單元緊湊,適合 1Mb~32Mb15–35 F²; charge trap cell, optimal for 1Mb~32Mb
|
先進節點超高密度Ultra-High in Adv. Nodes
30–50 F²;BEOL 垂直堆疊,不佔用邏輯 FEOL 面積30–50 F²; BEOL integration saves valuable logic area
|
先進節點高密度High Density in Adv. Nodes
15–35 F²;交叉點陣列 (Crossbar) 極具 3D 堆疊潛力15–35 F²; crossbar structure enables multi-layer 3D stacking
|
中高密度(6–50 F²)Medium-High Density
6–50 F²;1T1C 電容面積受限,FeFET 具 1T 高密度6–50 F²; 1T1C capacitor limited, FeFET enables 1T scaling
|
|
03
電源軌契約與晶片內建高壓幫浦Supply Rail Contract & On-Chip Charge Pump
學術指標對照:Academic Baseline:
對應原圖 Voltage (<1V, >10V, <3V...),升維至單電源 Core VDD vs 外接 VPP 針腳、峰值電流與 IR-DropCorresponds to academic technology metrics, elevated to SoC system integration criteria.
架構權衡實務:Architectural Tradeoff:
是否需要專用外接高壓針腳(增加封裝 Pin 腳與板級成本)?內建 Charge Pump 的開機升壓時間(Ramp-up)與瞬態突波電流(Inrush Current)對低功耗系統的衝擊。Assesses whether external high-voltage VPP pins are required (increasing package cost) versus integrated on-chip charge pumps, inrush current surges, and pump ramp-up latency.
|
需高電流源(~10-15mA)High Current (~10-15mA)
通常需專用 1.8V/2.5V 電源軌或外接高電流 PadRequires dedicated high-current supply rail or pad
|
純單一核心 VDDPure Core VDD Only
0.75V~1.2V 直接運作,無任何高壓或特殊電源需求0.75V~1.2V core rail, zero HV or analog pump needed
|
單一供電,內建微型幫浦Single Supply, Small Pump
核心 VDD 供電,內建幫浦升至 5~7V 擊穿,微安級瞬態Internal pump from core VDD to 5~7V, µA-level transient
|
單一供電或雙電源Single or Dual Supply
內建 6~8V 幫浦,熱載子注入需要毫安級瞬間電流Internal 6~8V pump, mA-level current for CHEI
|
單一供電,內建 FN 幫浦Single Supply, FN Pump
內建 10~14V 幫浦,純電壓穿隧,電流極低(<1µA)Internal 10~14V pump, pure FN tunneling, ultra-low current
|
單一供電,內建幫浦Single Supply, Internal Pump
內建 8~12V 幫浦,寫入電流依機制(FN 微安級 vs CHI 毫安級)Internal 8~12V pump, current depends on FN vs CHI mode
|
大型雙重內建高壓幫浦Large Dual HV Pumps
寫入需 10V+5V,抹除需 12~15V,升壓延遲 10~20µsProg 10V+5V, Erase 12~15V, pump ramp-up latency 10~20µs
|
內建高壓幫浦Internal HV Charge Pump
FN 寫抹需 9~12V 高壓,讀取直接使用核心 VDDFN P/E requires 9~12V, direct core VDD for sensing
|
純單一核心低電壓Pure Single Low-Voltage
~1.0-1.2V 直接翻轉,完全無高壓幫浦,但寫入需 30-80µA 脈衝~1.0-1.2V direct switching, zero pump, 30-80µA write pulse
|
低壓輔助幫浦(~2.5V)Low-V Boost Pump (~2.5V)
成形需 2.5V,SET/RESET 僅需 1.2-1.5V,幫浦極小Forming ~2.5V, SET/RESET 1.2-1.5V, minimal pump area
|
純單一核心低電壓Pure Single Low-Voltage
1.2V~1.8V 直接電場翻轉,完全無高壓幫浦1.2V~1.8V direct electric field switching, zero pump
|
|
04
讀取延遲、直讀時脈與就地執行Read Latency, XIP Clock & Bus Execution
學術指標對照:Academic Baseline:
對應原圖 Read time (~1ns, ~10ns, ~50ns...),升維至系統匯流排直讀頻率與是否強制 Shadow 到 SRAMCorresponds to academic technology metrics, elevated to SoC system integration criteria.
架構權衡實務:Architectural Tradeoff:
能否直接透過 AHB/AXI 匯流排執行程式碼(Execute-In-Place / XIP)?還是必須在開機時額外耗時複製(Shadowing)到系統 SRAM?Whether code can execute directly from the array over AHB/AXI buses (Execute-In-Place / XIP) or strictly mandates power-up boot shadowing into system SRAM.
|
慢速,強制 ShadowSlow (~1µs), Shadow Req.
感測延遲 ~1µs,必須在開機時整組 Shadow 到 SRAM 暫存器Access ~1µs, strictly requires boot shadowing to SRAM
|
超高速直讀(~5-15ns)Ultra-Fast XIP (~5-15ns)
直接靜態 1T 陣列,支援 100MHz+ 匯流排無等待直讀Static 1T array, supports 100MHz+ zero-wait XIP execution
|
中速直讀(~25-40ns)Direct XIP (~25-40ns)
受單元導通電流限制,支援 20~40MHz 直讀或開機載入Cell-current limited, supports 20~40MHz XIP or boot-load
|
中速直讀(~25-40ns)Direct XIP (~25-40ns)
感測放大器翻轉受限,可支援直讀或開機快取Sense amplifier trip limited, direct read or cacheable
|
中速直讀(~20-40ns)Direct Read (~20-40ns)
單元讀取電流適中,支援小區塊直讀或暫存器載入Moderate read current, supports direct read or shadow
|
中速直讀(~20-35ns)Direct Read (~20-35ns)
支援 30~50MHz 匯流排直讀,多用於參數與常數讀取Supports 30~50MHz direct read for calibration & constants
|
高速直讀(~15-25ns)High-Speed XIP (~15-25ns)
分離閘極讀取電流大,支援 80~133MHz 零等待 XIP 執行Split-gate high current, 80~133MHz zero-wait XIP MCU code
|
中高速直讀(~20-35ns)Direct XIP (~20-35ns)
支援 50~80MHz 匯流排 XIP 直讀執行Supports 50~80MHz bus XIP execution
|
類 SRAM 級(~10-25ns)SRAM-like XIP (~10-25ns)
TMR 感測快速,支援 100MHz+ 高速無等待隨機 XIPFast TMR sensing, 100MHz+ zero-wait random XIP execution
|
高速直讀(~10-20ns)Fast Direct Read (~10-20ns)
低阻態讀取電流充裕,支援高速隨機讀取Low-resistance state provides ample sensing margin
|
極高速破壞性讀取(~20-40ns)Destructive Read (~20-40ns)
感測需翻轉極化並立即預充電寫回(Auto-Restore)Polarization charge sensing requires automatic write-back
|
|
05
寫入粒度與量產燒錄測試成本Programming Granularity & ATE Test Cost
學術指標對照:Academic Baseline:
對應原圖 Write time (1ns~1ms),升維至 Bit/Byte/Sector 粒度與量產 ATE 機台測試燒錄費用Corresponds to academic technology metrics, elevated to SoC system integration criteria.
架構權衡實務:Architectural Tradeoff:
能否進行單一位元/位元組隨機更新?在晶圓測試 (CP) 與最終成品測試 (FT) 階段,燒錄金鑰與韌體需要多少機台秒數?(每增加 1 秒量產百萬顆即是巨額成本)。Single bit/byte random programming versus block erase; wafer-level CP and package-level FT burn-in time per chip on multi-million dollar ATE testers directly dictates production unit margins.
|
位元級寫入,測試極耗時Bit-level, High Test Cost
每個位元需 10~15mA 脈衝數毫秒,高容量燒錄造成 ATE 測試瓶頸ms-level pulse per bit, heavy ATE machine-time penalty
|
出廠光罩固化,零測試時間Zero Test Time (Factory)
生產即有資料,僅需常規邏輯測試,零燒錄時間成本Manufactured with data, zero programming test time
|
位元級寫入,毫秒級完成Bit-level, Fast CP/FT Test
單一位元崩潰僅數十微秒,1Kb~4Kb 金鑰在 CP 階段數毫秒內完成µs breakdown per bit; 1-4Kb keys programmed in <10ms
|
位元/位元組級,測試速度中等Bit/Byte, Moderate Test
熱電子注入需脈衝驗證循環,測試時間稍長於 AntiFuseCHEI requires pulse-verify loop; slightly longer than AntiFuse
|
位元組寫入/整頁抹除Byte Write / Page Erase
FN 穿隧抹寫需數毫秒,適合少量校準參數更新FN P/E requires ms-level pulses; optimal for trim updates
|
位元組寫入/區塊抹除Byte Write / Sector Erase
支援隨機位元組更新,整體量產測試時間受控Supports random byte update; controlled ATE test time
|
位元組寫入/扇區抹除Byte Write / Sector Erase
SSI 寫入快速(~10µs/byte),但 Sector 抹除需 5~10ms,整體 FT 燒錄需數秒Fast SSI (~10µs/B), but sector erase 5-10ms; multi-sec FT
|
頁面寫入/扇區抹除Page Write / Sector Erase
整頁寫入 ~1-2ms,扇區抹除 ~10ms,測試吞吐量居中Page write ~1-2ms, sector erase ~10ms; medium test speed
|
位元組/字組隨機寫,免抹除Byte/Word In-Place, No Erase
單元翻轉 <20ns,免除所有抹除步驟,量產 ATE 燒錄最快(毫秒級)<20ns flip, zero erase required; fastest ATE burn-in
|
位元組隨機寫入,需成形Byte In-Place, Needs Forming
免抹除,但出廠首次需要 Forming 步驟(增加測試工程流程)No erase needed, but requires factory forming step
|
超高速隨機位元組寫入Ultra-Fast Byte In-Place
寫入時間等同讀取(<50ns),無抹除延遲,測試極快Write speed equals read (<50ns), zero erase overhead
|
|
06
高溫資料保持與車規 Mission ProfileHigh-Temp Retention & AEC-Q100 Profile
學術指標對照:Academic Baseline:
對應原圖 Retention (>10y, >1y...),升維至 Arrhenius 活化能 Ea 與 AEC-Q100 Grade 0/1/2 認證Corresponds to academic technology metrics, elevated to SoC system integration criteria.
架構權衡實務:Architectural Tradeoff:
能否承受引擎室、車載底盤或工業高溫環境?AntiFuse 的金屬-矽微絲具極高活化能;浮閘/電荷捕捉受限於高溫熱去捕捉;MRAM 受限於高溫熱擾動退磁。Arrhenius thermal acceleration activation energy (Ea); AntiFuse ohmic filaments exhibit high Ea (>1.8eV) surviving 175°C Grade 0+, while charge-trap and magnetic cells face thermal leakage at extreme junctions.
|
125°C 10 年(車規 Grade 1)125°C 10yr (Auto Grade 1)
物理吹斷,高溫無洩漏,但存在極微小金屬再長回風險Physical rupture, but micro-risk of metal electromigration heal
|
永久保持(全溫區 Grade 0)Permanent (Auto Grade 0)
實體光罩接線,不隨溫度或時間衰退,無極限問題Hardwired mask layers, zero thermal degradation over time
|
175°C 10 年(車規 Grade 0+)175°C 10yr (Auto Grade 0+)
Ea ~1.8-2.1 eV,永久導通,耐受引擎室極端高溫Ea ~1.8-2.1 eV, irreversible filament, AEC-Q100 Grade 0+
|
125°C 10 年(車規 Grade 1)125°C 10yr (Auto Grade 1)
Ea ~1.1 eV,高溫氧化層洩漏限制在 Grade 1 範疇Ea ~1.1 eV, oxide thermal leakage bounds to Grade 1
|
125°C 10 年(工業/車規 Grade 1)125°C 10yr (Grade 1)
低干擾單層浮閘,125°C 保持良好,高溫退火需校準Low-disturb single poly, solid at 125°C, bounds Grade 1
|
125°C 10 年(工業/車規 Grade 1)125°C 10yr (Grade 1)
薄氧化層電荷保持,標準為 125°C 10 年Thin-oxide charge storage, standardized at 125°C 10yr
|
150°C 10 年 / 125°C 20 年150°C 10yr / 125°C 20yr
深厚氧化層隔離,車規 Grade 0 標竿量產架構Thick oxide isolation, golden standard for Auto Grade 0
|
125°C 10 年(部分 Grade 0 驗證)125°C 10yr (Some Grade 0)
氮化矽捕捉層高溫擴散限制,先進世代達成 150°C 保持SiN traps can diffuse; newer gens qualified to 150°C
|
125°C 10 年(高溫磁擾動挑戰)125°C 10yr (Grade 1 typical)
熱穩定因數 Δ 隨溫度急遽下降,150°C 需犧牲寫入電流或容量Thermal factor Δ drops with temp; 150°C requires larger Ic
|
85°C ~ 105°C(工業級)85°C ~ 105°C (Industrial)
氧空缺在高溫下自發擴散,高溫車規 Grade 0 仍屬研發邊界Oxygen vacancies diffuse at high temp; Grade 0 remains R&D
|
85°C 10 年 / 125°C 受限85°C 10yr / 125°C limited
居里溫度 (Curie Temp) 限制,高溫去極化需嚴格控管Curie temperature bound, thermal depolarization at high temp
|
|
07
SMT 迴焊爐耐溫與預燒錄出貨能力SMT Reflow Tolerance & Pre-Programming
學術指標對照:Academic Baseline:
原圖無對應(原圖未考慮封裝打件 260°C 熱歷程對金鑰與韌體的毀滅性風險)Corresponds to academic technology metrics, elevated to SoC system integration criteria.
架構權衡實務:Architectural Tradeoff:
能否在晶圓或裸晶階段預先燒錄安全金鑰與 Bootloader,再送入 260°C 無鉛迴焊爐打件?還是必須在打件後透過 JTAG 板級燒錄?Ability to withstand JEDEC J-STD-020 lead-free 260°C reflow heat without data corruption, enabling pre-programmed wafer/die delivery versus requiring post-assembly board-level programming.
|
100% 免疫迴焊熱衝擊100% Immune to Reflow
金屬或矽化物實體開路,耐受 260°C 迴焊,支援晶圓預燒Physical open-circuit, 100% safe through 260°C reflow
|
100% 絕對免疫100% Absolute Immune
金屬佈線層,耐受任何封裝與迴焊熱處理Hardwired interconnect, immune to all assembly heat
|
100% 免疫迴焊熱衝擊100% Immune to Reflow
歐姆導通微絲極端穩定,支援晶圓級預先燒錄安全金鑰Ohmic filament is ultra-stable; perfect for pre-program keys
|
具熱漏失風險,建議後燒Thermal Risk, Post-Program
260°C 烘烤可能導致微量熱電子逸出,降低感測裕度260°C reflow may bleed electrons; post-SMT burn advised
|
建議 SMT 打件後燒錄Post-SMT Recommended
迴焊熱應力影響浮閘電荷,量產建議在 SMT 後進行校準燒錄Thermal stress impacts charge; calibrate post-SMT
|
建議 SMT 打件後燒錄Post-SMT Recommended
薄氧化層電荷對 260°C 敏感,打件後燒錄最具可靠性Thin-oxide sensitive to 260°C; post-assembly preferred
|
厚氧化層耐受性佳,可預燒High Tolerance, Pre-Prog OK
ESF3 厚熱氧化層在 260°C 表現穩定,但車規常規仍採後燒Thick oxide survives 260°C reflow; qualified for pre-prog
|
中度耐受,需嚴密熱預算Moderate, Budget Monitored
氮化矽深能階捕捉電荷可耐受短暫迴焊,需注意烘烤次數Deep traps survive brief reflow, track cumulative cycles
|
極敏感(磁退火風險)Sensitive (Demag Risk)
260°C 高溫易誘發 MTJ 自由層熱退磁與擴散,需特殊高阻抗防護260°C heat risks MTJ demagnetization; requires special stack
|
成形前打件最優Pre-Forming Assembly Best
未成形狀態下耐溫良好;若已燒錄導電細絲在高溫有自癒風險Pristine state survives well; pre-formed filament risks diffusion
|
去極化風險,需重新極化Depolarization Risk
接近居里點時極化電荷衰退,打件後需重新寫入確認Polarization degrades near Curie point; re-program post-SMT
|
|
08
覆寫壽命與系統磨損管理負擔Endurance Lifecycle & Wear-Leveling
學術指標對照:Academic Baseline:
對應原圖 Endurance (1E5, 1E6-1E9, 1E14...),升維至 SoC 韌體磨損平衡 (Wear-Leveling) 與壞區管理負擔Corresponds to academic technology metrics, elevated to SoC system integration criteria.
架構權衡實務:Architectural Tradeoff:
能否直接取代 SRAM/BRAM?若是 eFlash/ReRAM,SoC 是否必須耗費寶貴的 CPU 與記憶體執行耗損平均(Wear-Leveling)演算法與垃圾回收?From 1-time OTP to 10^5 eFlash and 10^12 MRAM; dictates whether the host SoC CPU and RTOS must implement complex wear-leveling algorithms, bad-block management, and journaled filesystems.
|
1 次(OTP,不可逆)1 Cycle (OTP, Irrev.)
吹斷後物理結構永久改變,不可抹寫Irreversible physical link blown, strictly 1-time
|
0 次(唯讀)0 Cycles (Read-Only)
光罩固定,完全不可寫入或更改Mask pattern fixed, zero in-field write capability
|
1 次(可採虛擬多 Bank 更新)1 Cycle (Multi-Bank Emul.)
物理 1 次,但架構可劃分多個區塊透過指標實現數次版本更新Physical 1-cycle; logical multi-bank allows version updates
|
1 次(部分支援紫外線清除)1 Cycle (UV EPROM mode)
封裝後為 1 次;開模紫外線照射理論可清,量產不實用1-time in package; UV clear theoretical, impractical in mass
|
10⁴ ~ 10⁵ 次抹寫10⁴ ~ 10⁵ P/E Cycles
低干擾單層多晶矽,足以支援產品生命週期內所有參數校準Low-disturb FN, ample for lifelong trim and config updates
|
10³ ~ 10⁴ 次抹寫10³ ~ 10⁴ P/E Cycles
氧化層較薄,適合百次至千次級別之代碼補丁與日誌Thinner oxide limits cycles; ideal for code patches & logs
|
10⁴ ~ 10⁵ 次抹寫10⁴ ~ 10⁵ P/E Cycles
MCU 標準韌體儲存,需配合 Flash 檔案系統進行區塊管理MCU code standard; requires wear-leveling filesystem
|
10⁴ ~ 10⁵ 次抹寫10⁴ ~ 10⁵ P/E Cycles
捕捉層介電質疲勞磨損,需配合擦寫計數與 ECC 校驗Trapping layer fatigue; requires wear-counting & ECC
|
10¹⁰ ~ 10¹² 次(近無限)10¹⁰ ~ 10¹² (Near-Infinite)
自旋翻轉無物理磨損,可直接作為 Working RAM,零磨損演算法負擔Spin flip has no wearout; direct SRAM replacement, 0 software
|
10⁵ ~ 10⁶ 次抹寫10⁵ ~ 10⁶ P/E Cycles
細絲反覆生長斷裂存在累積缺陷,需適度磨損均衡機制Filament fatigue accumulates defects; requires wear leveling
|
10¹² ~ 10¹⁴ 次(極高耐久)10¹² ~ 10¹⁴ Cycles
極化翻轉疲勞極低,可直接取代 SRAM 進行無限制即時日誌記錄Negligible fatigue; directly replaces battery-backed SRAM
|
|
09
動態功耗與常關閉即時開機能力Active Energy & Normally-Off Instant-On
學術指標對照:Academic Baseline:
對應原圖 Write Energy (fJ~100pJ),升維至系統級動態電流、常關閉(Normally-Off)待機零漏電與開機能量Corresponds to academic technology metrics, elevated to SoC system integration criteria.
架構權衡實務:Architectural Tradeoff:
在電池供電的邊緣 IoT 或車用電子中,能否在待機時徹底切斷電源(Zero Standby Leakage)並在微秒內即時喚醒(Instant-On)?System dynamic current during read/write operations versus zero standby power-gated leakage (Normally-Off / Instant-On) for battery-operated edge IoT and AI sensors.
|
讀取低功耗,寫入高功耗Low Read / High Write Pwr
寫入需 10~15mA 峰值電流,電池供電裝置幾乎無法在線燒錄10-15mA write current makes in-field battery programming hard
|
極低動態功耗,零待機漏電Ultra-Low Active / 0 Leak
僅靜態 1T 邏輯切換,斷電無漏電,開機 0 延遲Static 1T switching, zero power-off leakage, 0-latency wake
|
極低功耗,完美常關閉Ultra-Low / Perfect N-Off
讀取 <0.5mW,斷電零漏電,喚醒僅數十納秒,最佳 IoT 金鑰Read <0.5mW, zero leakage, ns-level wakeup; ideal for IoT RoT
|
低動態功耗,零待機漏電Low Active / 0 Leakage
斷電完全不耗電,開機即讀,適合感測器配置Zero power-off leakage, instant read for sensor configs
|
純電壓寫入,低功耗Pure Voltage FN, Low Power
FN 寫抹電流 <1µA,電池供電裝置可輕易完成參數更新FN P/E current <1µA, battery-powered friendly for calibration
|
低至中功耗Low to Moderate Power
寫抹功耗適中,支援斷電零漏電與快速喚醒Controlled P/E power, zero standby leakage, fast wake
|
寫抹高功耗(高壓泵突波)High Write Pwr (HV Surge)
高壓電荷泵瞬態電流 15~30mA,需較大電源去耦電容HV pump surge 15~30mA, requires hefty decoupling caps
|
中等寫抹功耗Moderate Write Power
電荷捕捉層寫抹效率高於傳統浮閘,支援低功耗 MCUHigher efficiency than floating gate, supports low-power MCUs
|
寫入電流大,讀取極低功耗High Write I / Low Read Pwr
讀取如 SRAM,但 STT 翻轉需 30~80µA/bit;斷電完全零漏電SRAM-like read, but STT write requires 30-80µA; 0 standby leak
|
超低讀寫能耗(~pJ 級)Ultra-Low Energy (~pJ)
SET/RESET 脈衝極短(<50ns),是邊緣 AI 類腦運算首選Sub-50ns switching pulses, premier choice for Edge AI CiM
|
極致超低功耗(~100fJ 級)Extreme Low Power (~100fJ)
電場極化翻轉幾乎不消耗電荷,業界寫入能耗最低架構Electric-field displacement current only; lowest write energy
|
|
10
製程微縮可攜性與先進架構支援Process Scaling & Advanced Node Support
學術指標對照:Academic Baseline:
原圖無對應(原圖未分析 FinFET、GAA 奈米片與 BSPDN 背側供電的實體整合邊界)Corresponds to academic technology metrics, elevated to SoC system integration criteria.
架構權衡實務:Architectural Tradeoff:
能否跟隨主晶片微縮至 16nm/7nm/3nm/2nm GAA?eFlash 在 28nm 平面停滯;AntiFuse 可原生縮放至 2nm;MRAM/ReRAM 在 BEOL 低溫堆疊不受前段限制。Portability to FinFET, GAA nanosheets, and backside power delivery (BSPDN); eFlash strictly stalls at planar 28nm, while AntiFuse scales natively to 2nm GAA, and MRAM/ReRAM stack in low-temp BEOL.
|
可移植至先進節點,面積大Ports to GAA, Huge Area
金屬線路與接觸窗隨節點縮小,但寄生電阻使吹斷越來越困難Contact scales, but parasitic R makes blowing hard in FinFET
|
可移植,但先進光罩極昂貴Ports, but Costly Masks
先進 EUV 節點光罩費用數百萬美元,極少用於高階 ASICEUV mask cost ($M) makes Mask ROM uneconomic in GAA
|
一路微縮至 2nm GAA / BSPDNScales to 2nm GAA / BSPDN
利用核心薄閘氧電崩潰,Core 單元原生跟隨核心邏輯微縮,先進節點唯一 0-MaskTracks core GOX breakdown; Core cell natively scales with logic; sole 0-mask NVM at 2nm/BSPDN
|
平面 28nm 止步(無法 scaling)Stalls at Planar 28nm (No Scaling)
I/O 單元侷限 5V/3.3V 厚氧,無法隨 core 微縮,且浮閘結構與 FinFET 鰭片幾何衝突I/O cell bound to 5V/3.3V thick oxide, cannot scale with core; conflicts with 3D FinFET geometry
|
平面 28nm 止步Stalls at Planar 28nm
大面積控制電容在 FinFET 難以成形,成熟節點為主Large lateral capacitor impractical in FinFET/GAA
|
平面 28nm 止步Stalls at Planar 28nm
熱電洞注入依賴平面基板特性,先進 FinFET 難以相容Hot-carrier injection physics incompatible with FinFET fins
|
平面 28nm 嚴格止步Strict Stop at Planar 28nm
分裂閘三維高溫熱氧化層無法在 FinFET 3D 鰭片上成形Split-gate 3D thermal budget incompatible with FinFET
|
平面 28nm / 40nm BCDPlanar 28nm / 40nm BCD
成熟車規與 BCD 混合訊號主力,難以經濟跨入 FinFETAutomotive BCD workhorse; difficult to port to FinFET
|
BEOL 堆疊,跨入 22nm~12nmBEOL Stack, 22nm to 12nm
後段金屬低溫製程(<400°C),與前段邏輯完全解耦,主流替代 eFlashLow-temp BEOL decoupled from FEOL; primary eFlash successor
|
BEOL 堆疊,可延伸至 12nm+BEOL Stack, 12nm & Beyond
後段兩道金屬層間整合,極具微縮潛力,與 FinFET 相容Simple 2-mask BEOL stack, highly compatible with FinFET
|
FeFET 具 GAA 縮放潛力FeFET Scales with GAA
傳統 1T1C FeRAM 難微縮;新興 HfO2 FeFET 可直接整合於 GAA 閘極1T1C hard to scale; HfO2 FeFET directly integrates into GAA gate
|
|
11
實體層防竄改與硬體信任根 (Root of Trust)Physical Security, Anti-Tamper & PUF RoT
學術指標對照:Academic Baseline:
原圖無對應(原圖完全無安全考量,但 IP 評估中這是晶片防禦逆向工程的核心)Corresponds to academic technology metrics, elevated to SoC system integration criteria.
架構權衡實務:Architectural Tradeoff:
斷電後 SEM/TEM 顯微鏡下是否可見數據?是否防禦 FIB 電壓對比探針?能否原生衍生物理不可複製功能 (PUF) 晶片指紋?Whether stored data is visible under SEM/TEM post delayering; resistance to FIB voltage-contrast micro-probing, DPA side-channel leakage, and ability to derive native PUF hardware fingerprints.
|
極差(SEM 顯微鏡立即可見)Very Poor (Visible via SEM)
金屬或多晶矽物理熔斷開口在顯微鏡下立即可讀出,無安全性Physical gap clearly visible under SEM; zero optical security
|
極差(去層逆向光學可讀)Very Poor (Optically Readable)
接觸窗與通孔圖樣去層後透過光學顯微鏡即可全盤逆向Contact/via patterns easily reverse-engineered via delayering
|
極致安全(無實體痕跡,PUF 原生)Top Security (Invisible, PUF)
奈米級介電質崩潰微絲,TEM 無可辨特徵,FIB 無法探測,原生 PUFNano-scale filament invisible in TEM; FIB immune; native PUF
|
中等(存在電荷感測洩漏)Moderate (Charge Emiss. Risk)
可透過微光顯微鏡 (EMMI) 或光學誘導放電分析Vulnerable to emission microscopy or UV-induced discharge
|
中等(浮閘電荷易被探測)Moderate (Charge Probing)
浮閘儲存之電荷受限於雷射攻擊與電壓對比探針Floating gate charge vulnerable to voltage contrast & laser
|
中等(需主動屏蔽保護)Moderate (Shielding Req.)
需配合頂層金屬主動屏蔽(Active Metal Shield)以防探針攻擊Requires active metal shield over macro against probing
|
良好(分離閘極具幾何遮蔽)Good (Split-Gate Shielding)
控制閘極在幾何上覆蓋浮閘,具良好實體遮蔽防禦力Control gate physically overhangs FG, providing physical shield
|
優良(絕緣捕捉層不聚電荷)Very Good (Localized Traps)
電子分散於氮化矽奈米捕捉位點,探針極難局部讀出Electrons trapped locally in SiN; immune to single-probe drain
|
優良(防電氣探針,但懼強磁)Very Good (V-probe immune)
TEM 無法分辨磁矩,FIB 無法直接探測,但需防強外部磁場竄改Magnetic state invisible in TEM; requires magnetic shielding
|
優良(奈米導電絲難以觀測)Very Good (Nano Filament)
氧空缺細絲極細微,常規顯微鏡無特徵,抗逆向工程佳Sub-nm vacancy filament undetectable by standard microscopy
|
優良(晶格偶極無光學特徵)Very Good (Lattice Dipole)
鐵電晶格自發極化,無宏觀電荷或幾何形貌差異Spontaneous crystal polarization has zero geometric footprint
|
|
12
晶圓代工 PDK 生態、成熟度與多源供應Foundry PDK Maturity & Multi-Sourcing
學術指標對照:Academic Baseline:
原圖無對應(學術研究未考量商業代工廠 PDK 支援與跨廠移植風險)Corresponds to academic technology metrics, elevated to SoC system integration criteria.
架構權衡實務:Architectural Tradeoff:
主流代工廠(TSMC、UMC、GF、Samsung)是否有現成合格 PDK?是否存在單一 IP 供應商鎖定(Vendor Lock-in)?量產出貨顆數與驗證成熟度?Commercial PDK availability and volume production track record across TSMC, UMC, GlobalFoundries, and Samsung; mitigation of single-vendor lock-in risks.
|
各代工廠原生支援,介面互異Foundry Native, Unique APIs
TSMC/UMC 等廠原生免費提供,但各廠控制介面完全不相容Free native IP, but interfaces completely proprietary per fab
|
各代工廠原生支援Universal Foundry Support
成熟製程標準選單,極低風險,全球代工廠通用Standard commodity offering across all global foundries
|
全球量產標竿(數百億顆出貨)Global Benchmark (10B+ dies)
力旺 (eMemory)、Synopsys 全球各大廠 PDK 100% 覆蓋,量產實績第一eMemory & Synopsys ported to TSMC/UMC/GF/SMIC/Samsung; 10B+ shipped
|
成熟量產,多廠支援Mature, Multi-Fab Support
力旺 NeoBit 累積出貨數百億顆,0.5µm~55nm 成熟代工廠標配eMemory NeoBit benchmark in 0.5µm~55nm, massive volume
|
力旺/Floadia 等多廠 PDKMulti-Fab PDK Available
TSMC/UMC/Vanguard/SMIC 廣泛採用,成熟混合訊號主力Widely available across TSMC/UMC/VIS/SMIC mixed-signal PDKs
|
力旺/Synopsys 等量產實績Proven Volume Track Record
NeoMTP / AEON 在主流代工廠 180nm~40nm 具多年量產實績NeoMTP & AEON qualified across 180nm~40nm global PDKs
|
代工廠專屬授權,專利門檻高Fab License, High IP Barrier
TSMC/UMC/GF 提供,但需支付專利授權金與晶圓提成(Royalty)Available at TSMC/UMC/GF; high license fee and wafer royalty
|
代工廠與特定 IP 廠提供Foundry & IP Vendor
UMC、GF、Floadia 提供 PDK,多用於特定車規與 BCD 平台Offered on specific automotive & BCD lines at UMC/GF/Floadia
|
TSMC / Samsung / GF 主力平台TSMC / Samsung / GF Active
TSMC 22/16nm、Samsung 28/14nm、GF 22FDX 商業量產,各廠材料獨立Production at TSMC 22/16, Samsung 28/14, GF 22FDX; non-portable
|
TSMC / UMC / Weebit 逐漸普及TSMC / UMC / Weebit Growing
TSMC 40/28/22nm、UMC 22nm 陸續推出商業 PDK,處於高速擴張期Commercial PDKs ramping at TSMC 40/28/22 and UMC 22nm
|
少數代工廠專屬(Infineon/TI/TSMC)Specialized (Infineon/TI/TSMC)
傳統 FeRAM 僅少數 IDM 掌握;HfO2 FeFET 處於大廠先端 R&D 階段Traditional FeRAM IDM-bound; HfO2 FeFET in advanced foundry R&D
|
|
14
SoC 系統最佳適配場景與核心定位Target SoC Sweet-Spot Applications
學術指標對照:Academic Baseline:
原圖無對應(學術表未提供終端晶片架構落地的最佳應用場景分類)Corresponds to academic technology metrics, elevated to SoC system integration criteria.
架構權衡實務:Architectural Tradeoff:
是作為晶片身分證?安全密鑰?類比校準?韌體執行碼?還是高速即時日誌?精確選型決定晶片毛利與競爭力。Optimal architectural socket mapping: Security Root-of-Trust, analog trimming, MCU code flash, edge AI weight buffering, or mission-critical flight recorders.
|
晶圓瑕疵修補、封裝 IDWafer Repair & Package ID
SRAM 備援替換、極低容量晶片識別碼(Chip ID)SRAM redundancy repair, minimal chip serial ID
|
大量平價 Boot ROMHigh-Volume ASIC Boot ROM
出貨數千萬顆之固定引導碼,零授權金,低成本極致Ultra-high volume fixed bootloaders, zero license cost
|
安全金鑰、PUF 信任根、類比修補Root-of-Trust, PUF, Trim
Secure Boot 金鑰、AES/RSA/PQC 根金鑰、PMIC 類比精細修補Secure boot root keys, PQC seeds, PMIC precision analog trim
|
感測器校準、多媒體金鑰Sensor Trim, Media DRM Keys
CMOS 影像感測器 (CIS) 校準、顯示驅動 IC (DDIC) Gamma 修補CIS sensor calibration, DDIC gamma trim, HDMI/HDCP keys
|
穿戴常態參數、校準更新Wearable Params, Sensor Cal.
藍牙 BLE 裝置配對金鑰、感測器生命週期定期重新校準BLE pairing records, periodic sensor recalibration
|
小型 MCU 代碼、物聯網日誌Small MCU Code & IoT Logs
8/16-bit MCU 韌體儲存、智慧電表參數與低頻率日誌記錄8/16-bit MCU code storage, smart meter event logging
|
車用高性能 MCU 主程式碼Auto High-Perf MCU Firmware
車身控制器、底盤動力 MCU 程式碼快閃(Code Flash)Automotive body & chassis MCU main code flash with OTA
|
BCD 電源管理、工業控制韌體BCD PMIC & Industrial MCU
高壓馬達驅動、工業微控制器程式碼儲存High-voltage motor drive controllers, industrial MCU code
|
車用黑盒子、邊緣 AI 緩存、SRAM 替換Auto Blackbox, Edge AI, SRAM
車載即時駕駛日誌、AI 推論模型權重暫存、低功耗常關閉 MCUMission-critical flight recorders, Edge AI weights, normally-off
|
類腦神經形態運算、高密度儲存Neuromorphic CiM, High-Density
記憶體內運算 (CiM) 矩陣乘法、低成本物聯網 MCU 代碼In-memory computing crossbars, cost-effective IoT MCU storage
|
工業關鍵儀表、防竄改即時記錄Critical Metering & Fast Logs
智慧電表不斷電秒級記錄、醫療監護儀器即時狀態保存Smart metering instant power-loss logs, medical instrument state
|
